Extention Ladders: Branach Euro EN795 Fall Control System
Why Fall Protection?
Introducing FEU EN795 FC - Branach's New Flagship for Fall Protection Compliance:
• EN 131-2:2010+A2:2017,
• EN 795:2012-B,
• EN 353-2:2002,
• EN 341:2011/2C,
• EN 365:2004

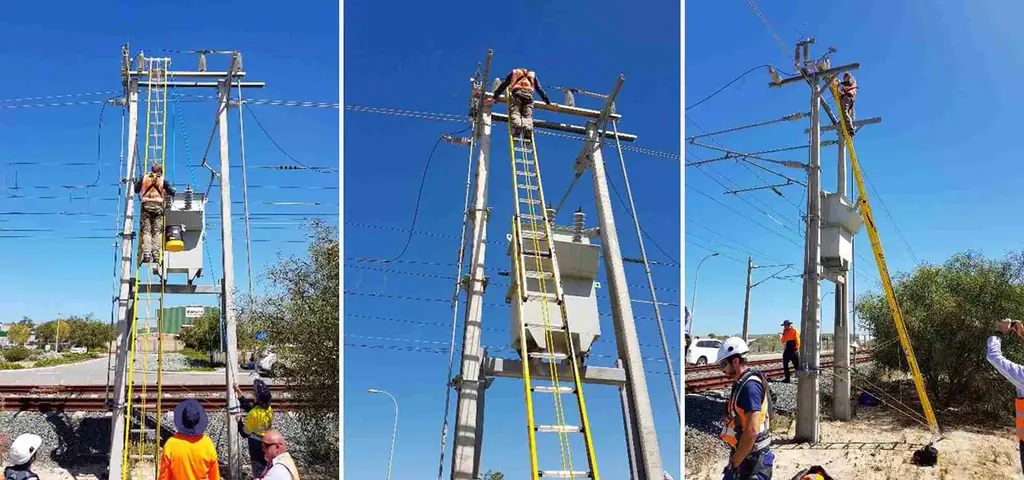

From July 2025, Branach will launch the FEU EN795 FC, our new flagship system for working at height. This development ensures your team will continue to access equipment that meets the highest standards for fall protection compliance and reliability.
EN 795, class B – What It Means?
EN 795 is a European standard that defines performance requirements for anchor devices in personal fall protection systems. The FEU EN795 FC has been independently tested and certified by TÜV Austria as a complete system under EN 795:2012-B, reinforcing Branach’s commitment to safety and regulatory excellence.
What has Changed?
- Reinforced TerrainMaster™ stabilisers for improved lateral stability
- Enhanced Branach Latch™ for greater locking strength and durability
- Redesigned Uni-Top™ with pulley mechanism (replacing traditional gate)
- Full system tested to 12 kN, not just the top anchor point, but the whole system
- These redesigned components result in a fully certified system offering unmatched safety assurance.

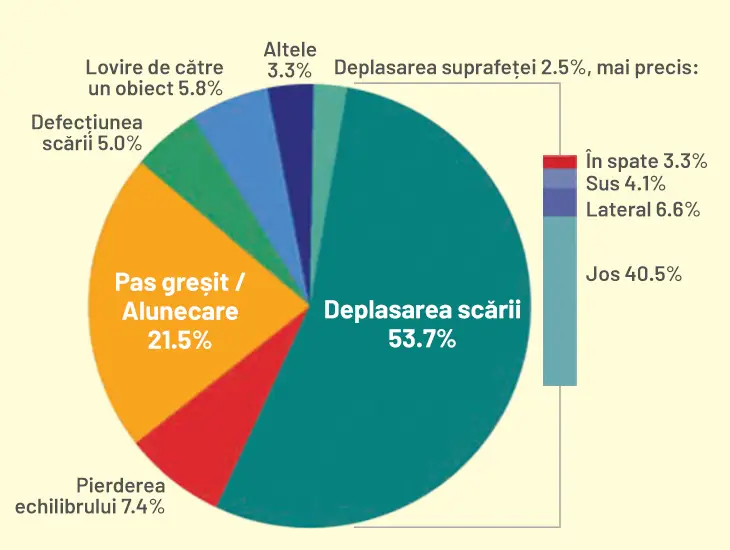

(†) Why people fall off ladders:
(†) Source: Liberty Mutual Research Institute for Safety – Center for Injury Epidemiology (CIE) From Research to Reality - Volume 15 | Number 3 | Winter 2012
Our system addresses four key elements:
- The STRENGTH of our system is designed to arrest the user in the event of a fall while,
- The STABILITY ensures that the user remains upright during a fall event.
- The ANCHORING mechanism is designed to ensure that the user does not separate from the ladder structure.
- The RESCUE element allows for safe lowering of the height worker by someone on the ground.
The design and unique construction of our award winning system addresses the two most common ladder failure modes:
Failure Mode 1:
STABILITY FAILURE – Movement of the ladder.
(1) Base slip, (2) movement of the top of the ladder and (3) sideways tipping.

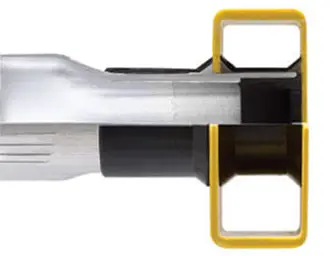

BOX RAIL rung joining system provides unparalleled performance in strength and stability, dramatically reduces twist and sway by up to 40%.

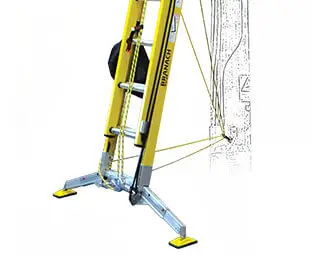

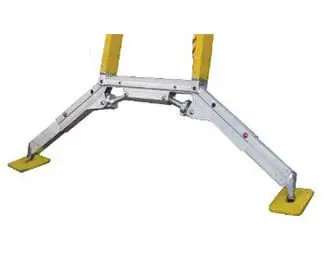

TERRAINMASTER™ ensures a stable footing and eliminates sideways movement.
TETHERS that can be bolted into the ground or structure. This ensures the ladder is securely fixed.
Failure Mode 2:
USER ERROR – Incorrect use of the Ladder.
(1) Foot missed/slipped, (2) user lost balance and (3) overreaching.

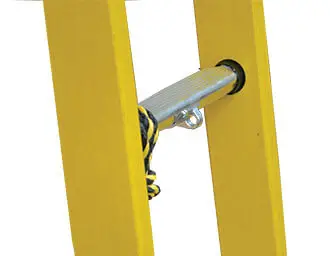

WORK POSITIONING HOOK, RUNG EYELET and HARNESS ensure adequate anchoring to the ladder structure.

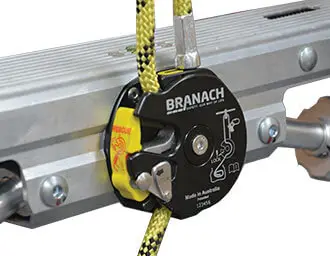

The INNOVATIVE DESCENDER allows the user to replace themselves back on the ladder. GROUND BASED RESCUE system allows a passerby to rescue the height technician in an emergency.

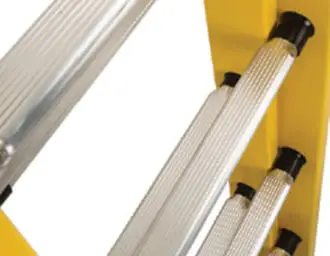

In addition, our NON-SLIP RUNGS help reduce foot slips.

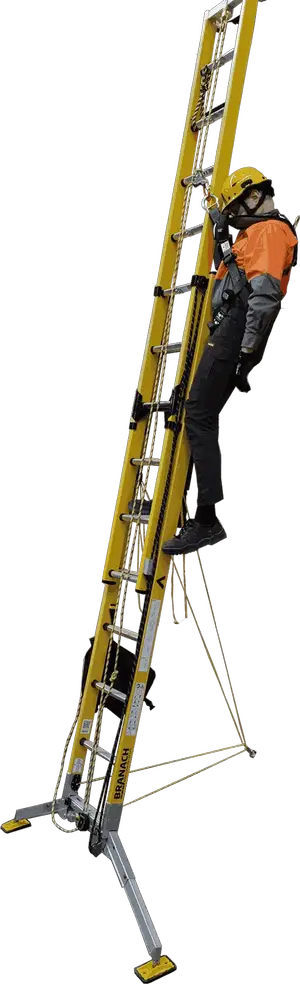

Guiding principles of the Branach Euro EN795 Fall Control System
- The worker is safe from the moment they leave the ground.
- The stability system works from the ground up.
- Fall control system stems from the increased base of support.
- The ladder is secured with an integrated tether system.
- Integrated rescue by second user from the ground.
- Allows workers to work from the ladder with both hands comfortably and safely.
- To meet and exceed compliance and international standards.
- Design fit for purpose, critical piece of climbing equipment.
- Periodic inspection schedule recommended.
Features

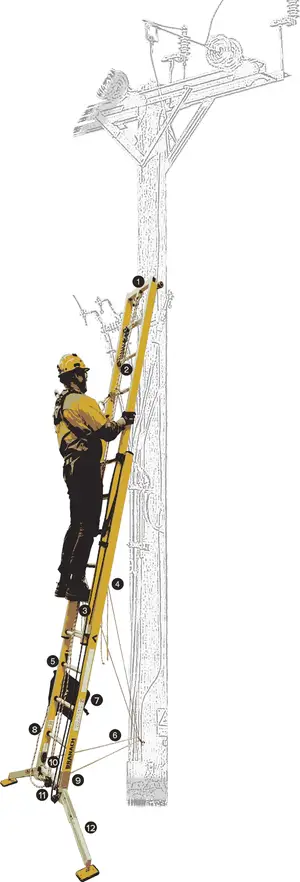

Componente:

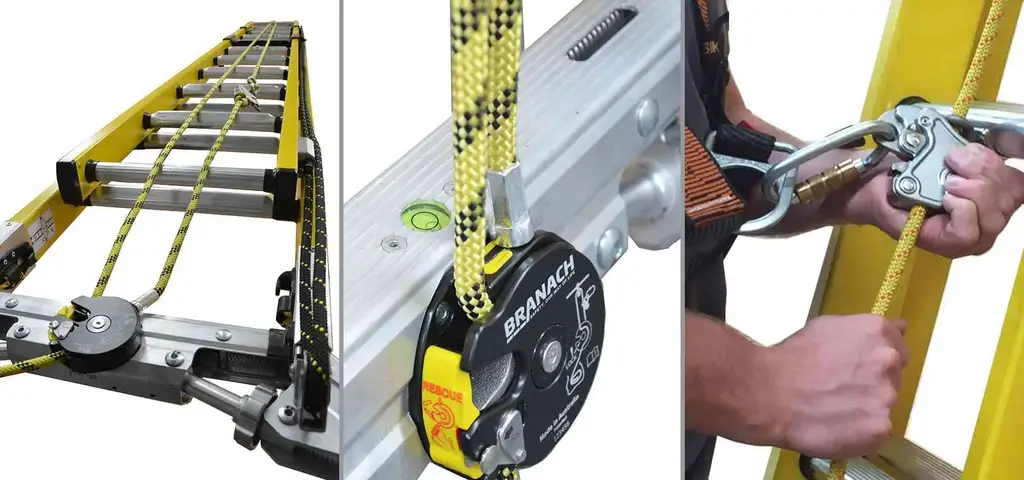

- Cross Bar and Upper Pulley
- Run Work Position Hook
- Non-slip Rungs
- Tether Tensioner
- Box Rail Rung Joining System
- Tether Rope
- Rope Bag
- Vertical Lifeline (configured for rescue)
- Lower Tether Hooks
- Level Bubble
- Descender
- Extra Wide TerrainMaster
Specs:
| MODEL | Closed Height | Extended Height | Weight | Load Rating | |
|---|---|---|---|---|---|
| FEU 3.9 EN795 FC | 2.90 m | 3.90 m | 25.0 kg | 150 kg / 150 kg | Technical details ↓ |
| FEU 5.1 EN795 FC | 3.50 m | 5.10 m | 28.0 kg | 150 kg / 150 kg | Technical details ↓ |
| FEU 6.3 EN795 FC | 4.10 m | 6.29 m | 29.0 kg | 150 kg / 150 kg | Technical details ↓ |
| FEU 7.5 EN795 FC | 4.70 m | 7.50 m | 38.5 kg | 150 kg / 150 kg | Technical details ↓ |
| FEU 8.7 EN795 FC | 5.30 m | 8.69 m | 42.5 kg | 150 kg / 150 kg | Technical details ↓ |
| FEU 9.6 EN795 FC | 5.90 m | 9.60 m | 46.5 kg | 150 kg / 150 kg | Technical details ↓ |

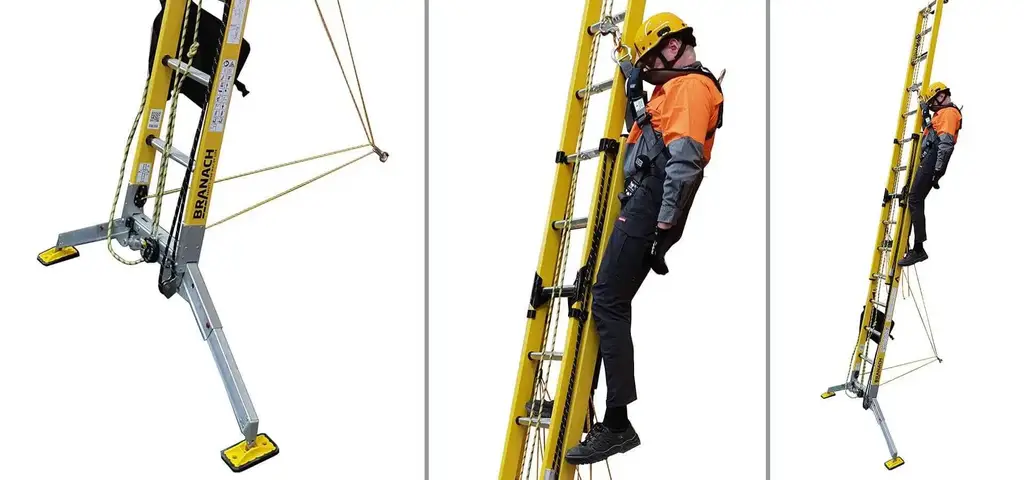

How does it work?
Step 1:
Deploy the TerrainMaster to its widest setting, using level bubble to ensure correct angle.
Step 2:
Attach rope tethers around pole or to structure. Apply tension.
Step 3:

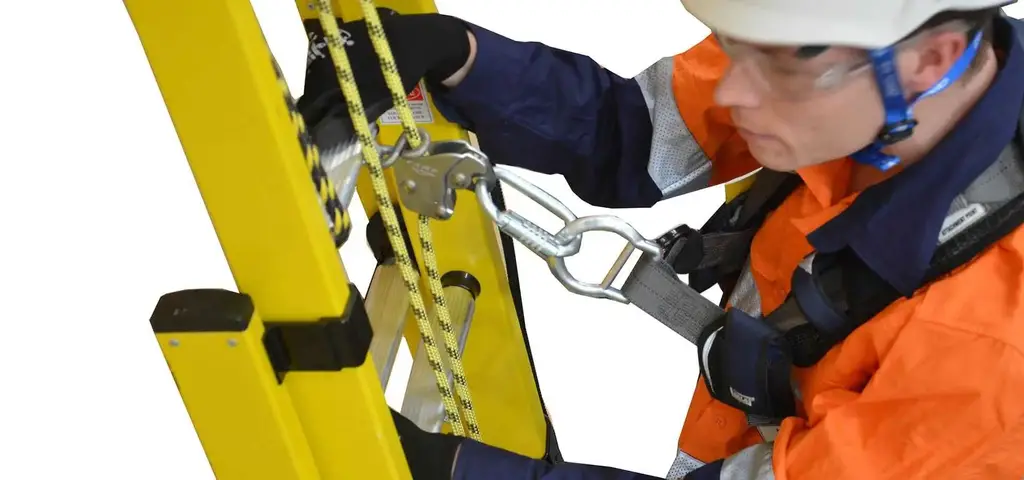

Attach harness to the fall arrest device.
Step 4:
Test weight on system.
Step 5:

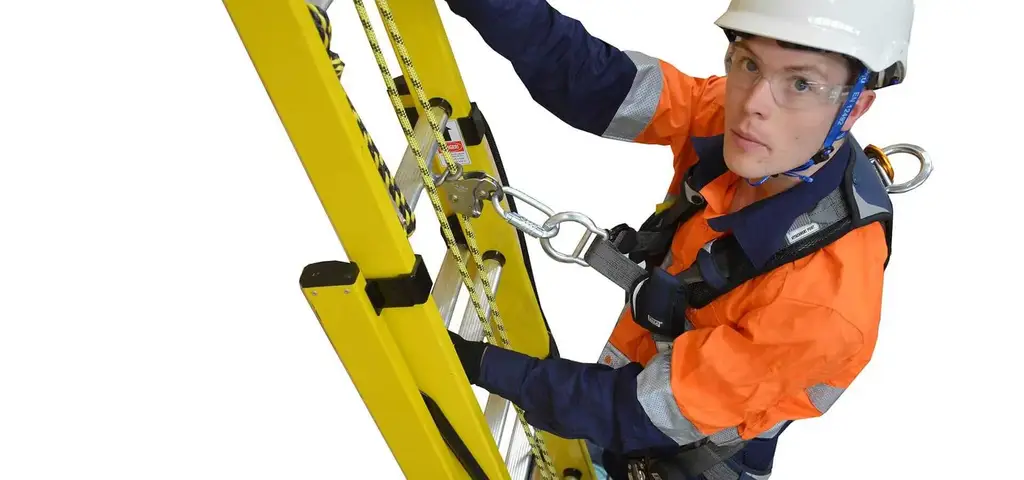

Ascend ladder to desired position. Use work positioning hook to attach to rung hook.
Step 6:
Rescue is simple and easy to perform without putting a second user at risk.
