BradyPrinter A5500 Flag Printer Applicator - EMEA
Order Reference: A5500 EU
- Application(s): Data and telecommunications labelling, Electrical labelling, Wire and cable labelling
- Continuous vs Die Cut Labels: Die-cut
- Colour Capability: Monocolor
- Resolution (dpi): 300 dpi
- Max. Label Width (mm): 50.80 mm
- Recommended Usage per Day: 7000
- Print Technology: Thermal Transfer
- Stand Alone Printing: Stand-alone & Peripheral
- Warranty: 1 year
Advantages of BradyPrinter A5500
BradyPrinter A5500 automates cable flagging
Adding a flag to your small-diameter wires gives you the space you need for your data, but without the right tools, can slow down your output. Free up your flagging time with the BradyPrinter A5500 Flag Printer Applicator.
- Fast flagging – print and apply your flags in as little as five seconds
- Reduce rework – flags are consistently applied evenly without wrinkles, skew or edge mismatch
- Get data on your label in a variety of ways, including over Wi-Fi
- Reduced waste – print and apply serialized labels as you go without having to go back and reprint a full batch if an error occurs
- This innovative print and apply machine turns a series of labor-intensive tasks into a fast automated process
- Received a Gold Rating as an innovative cabling and communications product in 2020 Cabling Installation & Maintenance Innovators Awards
- Test before you buy: Brady can print and apply flag labels to a sample of your wire. Contact Technical Support for more information
Specifications
Key Characteristics:
| Description | Value |
|---|---|
| Article Number | 151187 |
| Order Reference | A5500 EU |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Minimum Order Quanitity | 1 |
| Application(s) | Data and telecommunications labelling, Electrical labelling, Wire and cable labelling |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | BradyPrinter A5500 |
| Country of Origin | MY |
Dimensions
| Description | Value |
|---|---|
| Size - Width (mm) | 383.54 mm |
| Size - Height (mm) | 452.12 mm |
| Size - Depth (mm) | 604.52 mm |
| Weight (kg) | 34.00 kg |
| Max. Wire/Cable Diameter (mm) | 15.24 mm |
| Min. Wire/Cable Diameter (mm) | 1.52 mm |
| Minimum Label Height (mm) | 19.05 mm |
| Min. Label Width (mm) | 25.40 mm |
| Wire Diameter Range (mm) | 1,52 mm to 15,24 mm |
| Wire Gauge Range | 22 AWG - 0000 AWG |
| Dimensions | 383,54 mm (W) x 452,12 mm (H) x 604,52 mm (D) |
Material Characteristics:
| Description | Value |
|---|---|
| Materials Supported | Paper, Polyester, Polypropylene, Polyvinylfluoride |
Product Features:
| Description | Value |
|---|---|
| Bar Code Type | Supports 1D/Linear barcodes |
| Battery Type | Lithium-manganese Battery |
| Calibration | No |
| Connectivity Options | Ethernet, USB |
| Cutter | None |
| Display Type | Colour Touchscreen |
| Internal Memory Capacity | 32 GB, expandable through USB |
| Label Dimensions | Max. Label Width: Min. Label Width: |
| Memory Capacity | 32 GB - Memory expandable through USB |
| Operating Humidity Range | 20%-80% (RH non-condensing) |
| Operating System | Windows® 10, Windows® 7, Windows® 8 |
| Operating Temperature | 10°C - 40°C |
| Stand Alone Printing | Stand-alone & Peripheral |
| Power Source | AC Adaptor |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Shipped With Battery | Yes |
| Storage humidity | 10%-90% (non-condensing) |
| Storage Temperature | 0°C - 60°C |
Printing Specifications:
| Description | Value |
|---|---|
| Print Technology | Thermal Transfer |
| Print Speed (mm/sec) | 76.00 mm/s |
| Colour Capability | Monocolour |
| Resolution (dpi) | 300 dpi |
| Display Resolution | 1024 x 800 pixels |
| Max. Label Width (mm) | 50.80 mm |
| Recommended Usage per Day | 7000 |
| Max. Print Width (mm) | 50.80 mm |
| Max. Print Length (mm) | 101.60 mm |
| Maximum Label Height (mm) | 101.60 mm |
| Font Styles | Arial, Arial 65, Courier New, Tahoma, Times New Roman |
| Application Cycle Time | 5 seconds |
| Hours of Operation | 24 hours/7 days |
| Programming Language | BPL (Brady Programming Language) |
Compatibility:
| Description | Value |
|---|---|
| Continuous vs Die Cut Labels | Die-cut |
| Software Compatibility | Brady Workstation |
| B- Numbers supported | B-424, B-425, B-437, B-472, B-483 |
| Compatible Media | A55- |
| Min. Label Length (mm) | 19.05 mm |
What's Included:
| Description | Value |
|---|---|
| Includes | BradyPrinter A5500 Flag Printer Applicator, Brady Workstation Product and Wire ID Suite, A5500 print driver, USB Cable, power cord, roll of A55-4-483, roll of SSR6002 ribbon |
| Warranty | 1 year |
Compliance:
| Description | Value |
|---|---|
| UNSPSC | 45101519 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 14 June 2023 |

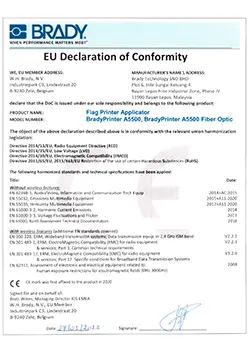

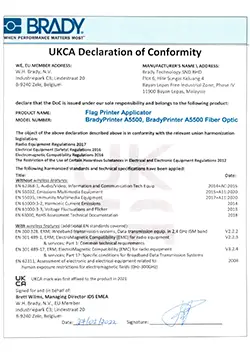

| Approval/Compliance | CE 2011/65/EU, CE 2014/30/EU EMCD, CE 2014/35/EU LVD, CE 2015/863/EU, EN \ IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+ A2:2013, RoHS, UL 60950-1, 2nd Edition, WEEE |
| Safe Use Instructions | SUI_Systems.pdf |

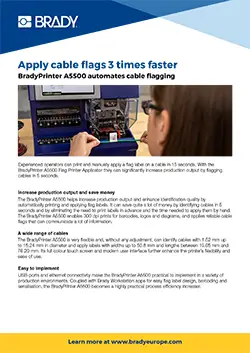

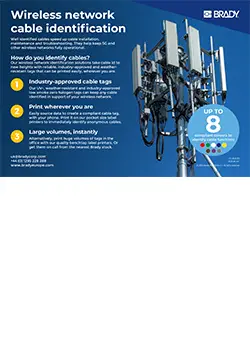

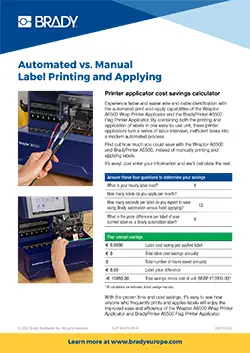

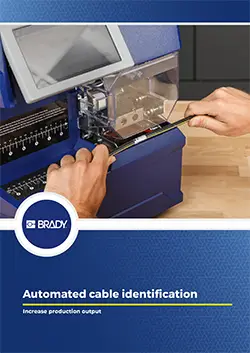

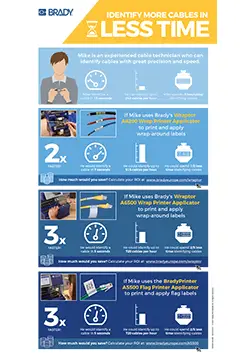

PDF Resources
Media
BradyPrinter A5500 Flag Printer Applicator Overview
Identify and Solve Skewed or Mismatched Flags - BradyPrinter A5500
Loading and Unloading Material Instructions for the BradyPrinter A5500
Loading and Unloading Ribbon Instructions for the BradyPrinter A5500
