Portable Label Printer M510 EU with Brady Workstation Suite
Order Reference: M510-EU-BWS
- Continuous vs Die Cut Labels: Continuous and Die-cut
- Stand Alone Printing: Stand-alone & Peripheral
- Colour Capability: Monocolor
- Max. Label Width (mm): 38.10 mm
- Recommended Usage per Day: 1000
- Resolution (dpi): 300 dpi
- Print Technology: Thermal Transfer
- Application(s): Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Healthcare and Hospital labelling, Inventory and inspection labelling, Laboratory labelling, Lean and 5S labelling, Safety identification, Warehouse marking, Wire and cable labelling
- Warranty: 2 years
Advantages of Brady M510
The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do.
- Create large 38.10 mm labels with edge-to-edge printing and a wide range of text sizes
- Print up to 38.10 mm per second to get work done faster
- Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
- Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC
- Backlit full-colour LCD graphics display for easier labelling in low-lit areas
- Durably designed to withstand 1.2 m drops
- Ships with a licence for the Brady Workstation suite of your preference: Product & Wire Identification, Safety & Facility Identification, or Lab Identification, enabling easy creation of a wide range of labels and signs.
- The rechargeable NiMH battery prints up to 1700 labels on a single charge
Brady M510 Label Printer
Specifications
Key Characteristics:
| Description | Value |
|---|---|
| Article Number | 322723 |
| Order Reference | M510-EU-BWS |
| Total Qty per Pack | 1 Piece(s) / Box |
| Minimum Order Quanitity | 1 |
| Application(s) | Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Healthcare and Hospital labelling, Inventory and inspection labelling, Laboratory labelling, Lean and 5S labelling, Safety identification, Warehouse marking, Wire and cable labelling |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | M510 |
| Country of Origin | MY |
Dimensions
| Description | Value |
|---|---|
| Size - Width (mm) | 146.05 mm |
| Size - Height (mm) | 95.25 mm |
| Size - Depth (mm) | 254.00 mm |
| Weight (kg) | 1.38 kg |
| Display Size | 71.12 mm |
| Minimum Label Height (mm) | 5.99 mm |
| Min. Label Width (mm) | 5.97 mm |
| Dimensions | 146,05 mm (W) x 95,25 mm (H) x 254,00 mm (D) |
Material Characteristics:
| Description | Value |
|---|---|
| Materials Supported | BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallised Polyester, Nylon Cloth, Polyester, Polyethylene Tag, Polypropylene, Reflective Tape, Repositionable Vinyl, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper |
| Colour | Blue, Grey |
Product Features:
| Description | Value |
|---|---|
| Battery mAh Rating | 1200 mAh |
| Bar Code Type | Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E |
| Auto Shut Off | 10 minutes, User Configurable |
| Battery Type | Rechargeable NiMH Battery |
| Battery Weight (metric) | 230.00 g |
| Built-in Symbols | 480 |
| Language Support | Bulgarian, Chinese (Traditional & Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish |
| Calibration | Automated through Smart Cell |
| Connectivity Options | USB |
| Custom Labels Available | No |
| Cutter | Single Hand Manual Actuate, Straight Cut, With label retention |
| Display Type | Colour LCD Screen, LCD backlit graphics display |
| How Is Battery Shipped | Shipped installed in equipment |
| Interface Type | Full QWERTY Keyboard, PC |
| Internal Memory Capacity | 512 MB RAM, 256 MB Flash |
| Barcode Symbologies - 2D | Data Matrix, QR code |
| Keyboard Type | QWERTY |
| Operating Humidity Range | 20%-90% (non-condensing) |
| Operating Temperature | 4°C - 43°C |
| Stand Alone Printing | Stand-alone & Peripheral |
| Power Source | AC Adaptor, Rechargeable Battery |
| Power Supply Voltage | 110 - 240 V |
| Printing Wizards | 66 Block, Breaker Box, DesiStrip, Faceplate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap |
| Recharge Time | 4 hours |
| Shipped With Battery | Yes |
| Storage humidity | 10%-90% (non-condensing) |
| Storage Temperature | -18°C - 43°C |
| Charging Times | Charging over battery charger (0 - 100%) 4h |
Printing Specifications:
| Description | Value |
|---|---|
| Print Technology | Thermal Transfer |
| Print Speed (mm/sec) | 38.10 mm/s |
| Printing Functions | Auto Format, Banner, Date/Time Stamp, Fixed Length, Justification, List Function, Mirror, Multi-copy, Print Preview, Reverse, Rotate, Serialisation, Vertical |
| Colour Capability | Monocolour |
| Resolution (dpi) | 300 dpi |
| Display Resolution | 320 x 240 pixels |
| Max. Label Width (mm) | 38.10 mm |
| Max. Liner Width (mm) | 45.72 mm |
| Recommended Usage per Day | 1000 |
| Max. Print Width (mm) | 36.58 mm |
| Max. Print Length (mm) | 99.06 cm |
| Text Sizes (pt) | 4 - 170 pt |
| Font Styles | Brady Alpine, Brady Fixed Width |
| Symbol Categories | Arrows, Datacom, Electrical, Exit, Fire Safety, First Aid, GHS/CLP, Greek, Home Electrical, HSID, International, ISO Signs, Laboratory, Mandatory, Miscellaneous, Packaging, Personal Protective Equipment, Prohibition, Public Information, Safety, Warning, WHIMIS |
| Number of Stock Parts | 250+ standard parts |
| On Screen Indicators | Battery Life, Supply Remaining |
| Print Rotation | Yes |
| Drop Test | Resistant to 1.2 metre drops |
| Serialisation | Simple & Simultaneous & Single Advanced & Multiple Advanced |
| Smart Cell | Yes |
Compatibility:
| Description | Value |
|---|---|
| Continuous vs Die Cut Labels | Continuous and Die-cut |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
| B- Numbers supported | B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-425A, B-427, B-428, B-430, B-432, B-461, B-481, B-482, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641 |
| Compatible Media | M4-, M4C-, M5-, M5C- |
| Min. Label Length (mm) | 6.10 mm |
| Min. Liner Width (mm) | 20.65 mm |
What's Included:
| Description | Value |
|---|---|
| Includes | This M510 Printer ships in a cardboard box with a rechargeable NiMH Battery Pack, an AC Adapter, B-595 Vinyl label Cartridge, a Quick start Guide, a USB Cable, a licence for Brady Workstation Software suites and a USB Flash Drive with Driver and User Manual. |
| Warranty | 2 years |
Compliance:
| Description | Value |
|---|---|
| UNSPSC | 45101520 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 23 January 2024 |
| Approval/Compliance | CE, FCC, UKCA |
| Safe Use Instructions | Sistem_SUI.pdf |

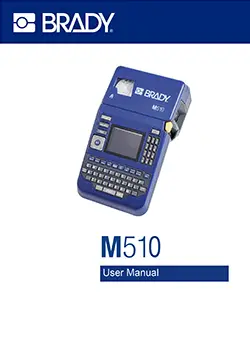

PDF Resources
