Wraptor A6500 Wrap Printer Applicator with Product and Wire ID Software Suite EU
Order Reference: WRAPTOR-A6500-EU
- Application(s): Data and telecommunications labelling, Electrical labelling, Wire and cable labelling
- Connectivity Options: Ethernet, USB
- Continuous vs Die Cut Labels: Die-cut
- Max. Label Width (mm): 50.80 mm
- Recommended Usage per Day: 7000
- Max. Print Length (mm): 41.30 mm
- Resolution (dpi): 300 dpi
- Colour Capability: Monocolor
- Warranty: 1 year
Advantages of Wraptor A6500
Wraptor A6500 Wire ID Printer Applicator | Identify cables in 5 seconds | Automated solution
Wraptor™ A6500 Wire ID Printer Applicator. Automate your wire identification process. The Wraptor A6500 Wire Identification Printer Applicator can significantly increase production output by identifying cables with wrap-around labels in 5 seconds. The Wraptor automatically prints and applies the label on a wide range of insertable cables, saving up to 10 seconds per identified cable.
- Increase productivity - cut labelling time in half to keep your output numbers high
- Reduce errors - get sustainable, consistent identification without the rework
- Make changes fast - intuitive full-colour touchscreen and user interface make changing settings easy
- Print and apply self-laminating labels in five seconds
- Automate time-consuming labelling tasks
- Identify wires from 1.524 mm to 15.24 mm diameter
Specifications
Key Characteristics:
| Description | Value |
|---|---|
| Article Number | 149244 |
| Order Reference | WRAPTOR-A6500-EU |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Minimum Order Quanitity | 1 |
| Application(s) | Data and telecommunications labelling, Electrical labelling, Wire and cable labelling |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | Wraptor™ A6500 |
| Country of Origin | MY |
Dimensions
| Description | Value |
|---|---|
| Size - Width (mm) | 368.30 mm |
| Size - Height (mm) | 450.90 mm |
| Size - Depth (mm) | 571.50 mm |
| Weight (kg) | 34.00 kg |
| Max. Wire/Cable Diameter (mm) | 15.24 mm |
| Min. Wire/Cable Diameter (mm) | 1.52 mm |
| Minimum Label Height (mm) | 19.05 mm |
| Min. Label Width (mm) | 12.70 mm |
| Wire Diameter Range (mm) | 1,52 mm to 15,24 mm |
| Wire Gauge Range | 22 AWG - 0000 AWG |
| Dimensions | 368,30 mm (W) x 450,90 mm (H) x 571,50 mm (D) |
Material Characteristics:
| Description | Value |
|---|---|
| Materials Supported | Nylon Cloth, Polyimide, Self-laminating Vinyl |
Product Features:
| Description | Value |
|---|---|
| Bar Code Type | Codablock A, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E |
| Battery Type | Lithium-manganese Battery |
| Calibration | Manual |
| Connectivity Options | Ethernet, USB |
| Display Type | Colour Touchscreen |
| External Memory Type | Memory expandable through USB |
| Internal Memory Capacity | 32 GB, expandable through USB |
| Memory Capacity | 32 GB - Memory expandable through USB |
| Operating Humidity Range | 20%-80% (RH non-condensing) |
| Operating System | Windows® 10, Windows® 7, Windows® 8 |
| Operating Temperature | 10°C - 40°C |
| Stand Alone Printing | Stand-alone & Peripheral |
| Power Source | AC Adaptor |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Shipped With Battery | Yes |
| Storage humidity | 10%-90% (non-condensing) |
| Storage Temperature | 0°C - 60°C |
Printing Specifications:
| Description | Value |
|---|---|
| Print Technology | Thermal Transfer |
| Print Speed (mm/sec) | 76.00 mm/s |
| Colour Capability | Monocolour |
| Resolution (dpi) | 300 dpi |
| Display Resolution | 1024 x 800 pixels |
| Max. Label Width (mm) | 50.80 mm |
| Recommended Usage per Day | 7000 |
| Max. Print Width (mm) | 50.80 mm |
| Max. Print Length (mm) | 41.30 mm |
| Maximum Label Height (mm) | 76.20 mm |
| Font Styles | Arial, Arial 65, Courier New, Tahoma, Times New Roman |
| Application Cycle Time | 5 seconds |
| Hours of Operation | 24 hours/7 days |
| Programming Language | BPL (Brady Programming Language) |
Compatibility:
| Description | Value |
|---|---|
| Continuous vs Die Cut Labels | Die-cut |
| Software Compatibility | Brady Workstation, LabelMark, Windows based driver for 3rd party software use |
| B- Numbers supported | B-417, B-427, B-472, B-499 |
| Compatible Media | WRAP- |
| Min. Label Length (mm) | 19.05 mm |
What's Included:
| Description | Value |
|---|---|
| Includes | Wraptor™ A6500 Wire ID Printer Applicator, including Brady Workstation Product and Wire ID label design and printing software, Wraptor™ print driver, USB cable, power cord, roll of WRAP-4-427 and roll of R-4302 ribbon |
| Warranty | 1 year |
Compliance:
| Description | Value |
|---|---|
| UNSPSC | 45101519 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 14 June 2023 |
| Approval/Compliance | CE 2011/65/EU, CE 2014/30/EU EMCD, CE 2014/35/EU LVD, CE 2015/863/EU, EN \ IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+ A2:2013, RoHS, UL 60950-1, 2nd Edition, WEEE |
| Safe Use Instructions | SUI_Systems.pdf |
Accessories
WRAPTOR-PTR Compact Flash Card 512 MB
WRPTR-512MB-CF

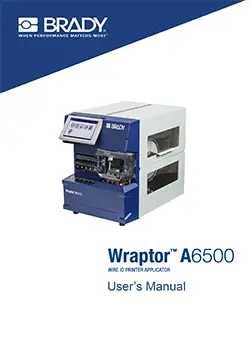

PDF Resources
