A8500 Print & Apply 300 dpi - for up to 101mm wide consumables to be combined with left applicator

Order Reference: A8500-34L

Print Technology: Thermal Transfer
Resolution (dpi): 300 dpi
Colour Capability: Monocolor
Max. Label Width (mm): 101.60 mm
Recommended Usage per Day: 7000
Stand Alone Printing: Stand-alone & Peripheral
Application(s): Component and equipment labelling
Continuous vs Die Cut Labels: Die-cut
Warranty: 2 years

Advantages of BradyPrinter A8500

BradyPrinter A8500 Label Printer Applicator | Circuit board labelling by Brady

A fully automated printed circuit board labelling solution can activate the competitive advantages of Smart Manufacturing. Automatically print & place a reliable traceability label anywhere on any multi- or single board standard PCB in 3 seconds.

Automatically print & place multiple unique labels on a standard PCB at a speed of 3 seconds per label.
Place labels anywhere on a PCB with a consistency and accuracy of 0.1 mm. Easily position labels on an actual PCB picture that can be stored for reuse.
Print data from an ERP-system on demand, on reliable traceability labels that resist the entire PCB manufacturing process.
Easily connect in-line to any PCB manufacturing line with SMEMA-compliance.
The BradyPrinter A8500 offers industry 4.0 connectivity and is OPC UA ready. Information can be transferred by the BradyPrinter A8500 to the plant control system, which can then initiate the next action.

Specifications

Key Characteristics:

Description	Value
Article Number	306696
Order Reference	A8500-34L
Total Qty per Pack	1 Piece(s) / Box
Minimum Order Quanitity	1
Application(s)	Component and equipment labelling
Quantity	1
Brand	Brady®
Trade Name	BradyPrinter A8500
Country of Origin	DE

Dimensions

Description	Value
Size - Width (mm)	199.90 mm
Size - Height (mm)	400.05 mm
Size - Depth (mm)	200.00 mm
Weight (kg)	20.00 kg
Minimum Label Height (mm)	4.00 mm
Min. Label Width (mm)	20.07 mm
Dimensions	199,90 mm (W) x 400,05 mm (H) x 200,00 mm (D)

Material Characteristics:

Description	Value
Materials Supported	Polyimide

Product Features:

Description	Value
Battery Type	No Battery
Calibration	Manual
Connectivity Options	Ethernet, I/O connection, RS232, Serial, USB, USB 2.0, Wi-Fi (optional)
Display Type	Colour LCD Touchscreen
Hardware Options	Applicators, External display
Internal Memory Capacity	256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB
Operating Humidity Range	10%-85% (non-condensing)
Operating System	Windows® 10, Windows® 7, Windows® 8
Operating Temperature	5°C - 40°C
Stand Alone Printing	Stand-alone & Peripheral
Power Source	AC Adaptor
Power Supply Voltage	100 - 240 V @ 50 - 60 Hz
Storage humidity	20%-85% (non-condensing)
Storage Temperature	0°C - 60°C

Printing Specifications:

Description	Value
Print Technology	Thermal Transfer
Print Speed (mm/sec)	300.00 mm/s
Colour Capability	Monocolour
Resolution (dpi)	300 dpi
Display Resolution	480 x 272 pixels
Max. Label Width (mm)	101.60 mm
Max. Liner Width (mm)	118.00 mm
Recommended Usage per Day	7000
Max. Print Width (mm)	101.60 mm
Max. Print Length (mm)	80.01 mm
Maximum Label Height (mm)	320.00 mm
Hours of Operation	24 hours/7 days

Compatibility:

Description	Value
Continuous vs Die Cut Labels	Die-cut
Software Compatibility	Brady Workstation, CodeSoft, Windows based driver for 3rd party software use
B- Numbers supported	B-717, B-718, B-719, B-727, B-728, B-729, B-7727, B-776, B-777
Compatible Media	PTL-, THT-, THTCLT
Min. Label Length (mm)	4.00 mm

What's Included:

Description	Value

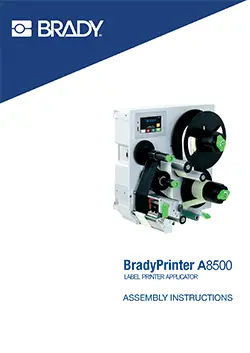

Includes	The A8500 printer, user manual, the printer driver , a power cable type E+F (1,8m), a USB cable (1,8m)
Warranty	2 years

Compliance:

Description	Value
UNSPSC	45101519
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
REACH SVHC Status	Part does not contain an SVHC
REACH Candidate List Date	17 January 2022
